RH - Rohrheizer

RH

Rohrheizer

Die Lufterhitzer der Baureihe RH werden in denjenigen Zwangslüftungssystemen eingesetzt, in den die Erhöhung der Temperatur in der Wintersaison oder die Erhaltung einer konstanten Raumtemperatur nötig ist.
Fragen Sie nach einem Produkt

APPLICATION

RH heaters are used in mechanical ventilation systems where it is necessary to periodically raise the temperature or maintain the temperature at a constant level in the rooms. They can also be used in technological processes that require the supply of constant temperature air.

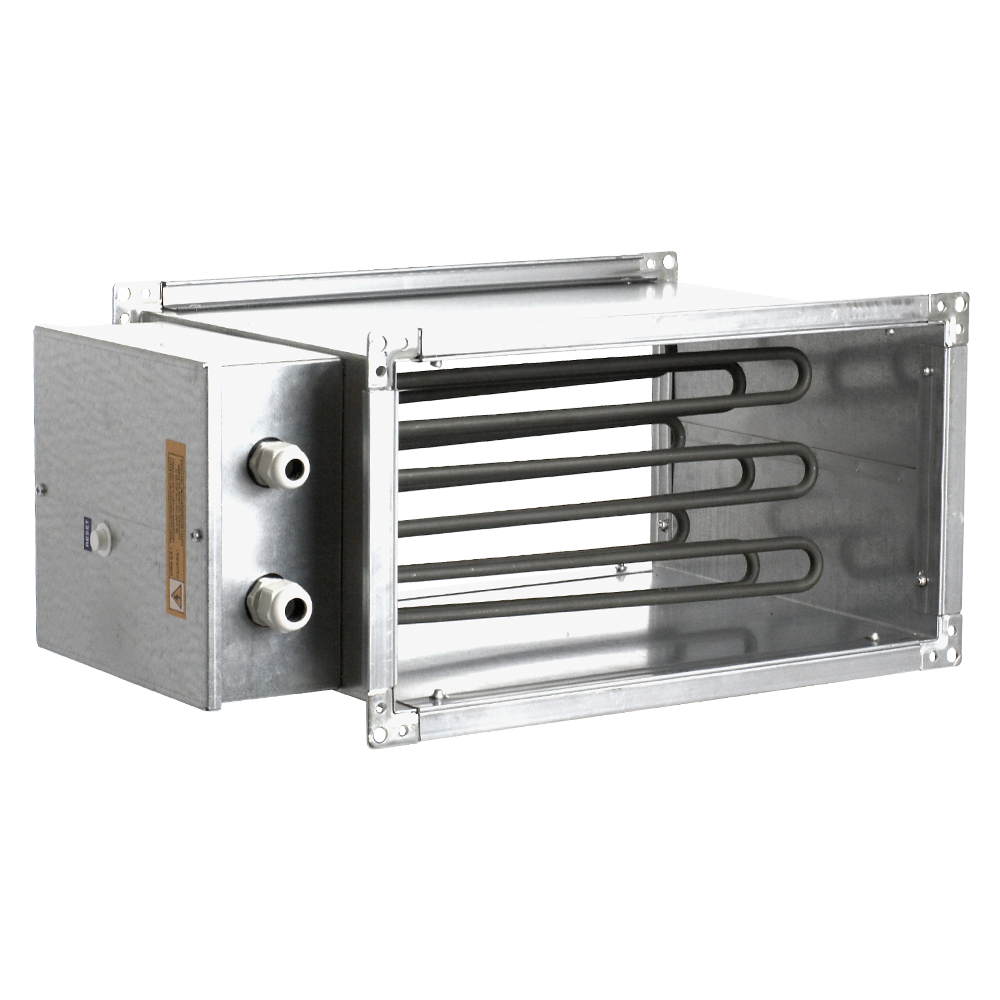

CONSTRUCTION

Electric duct heaters suitable for installation directly in rectangular ducts. The housing is made of galvanized sheet steel and stainless steel heating elements. The heaters are fitted with a double overheat protection system as standard: the first automatic element (temp. +75oC), the second one with manual reset (temp. + 85oC). Channel heaters should be selected so that the outlet air temperature does not exceed +45oC.

The airflow rate of the heaters must not be less than 1,5 m/s. On request, the device can be supplied in any color from the RAL palette.
