AFH - Axialventilator Rohrausführung

AFH

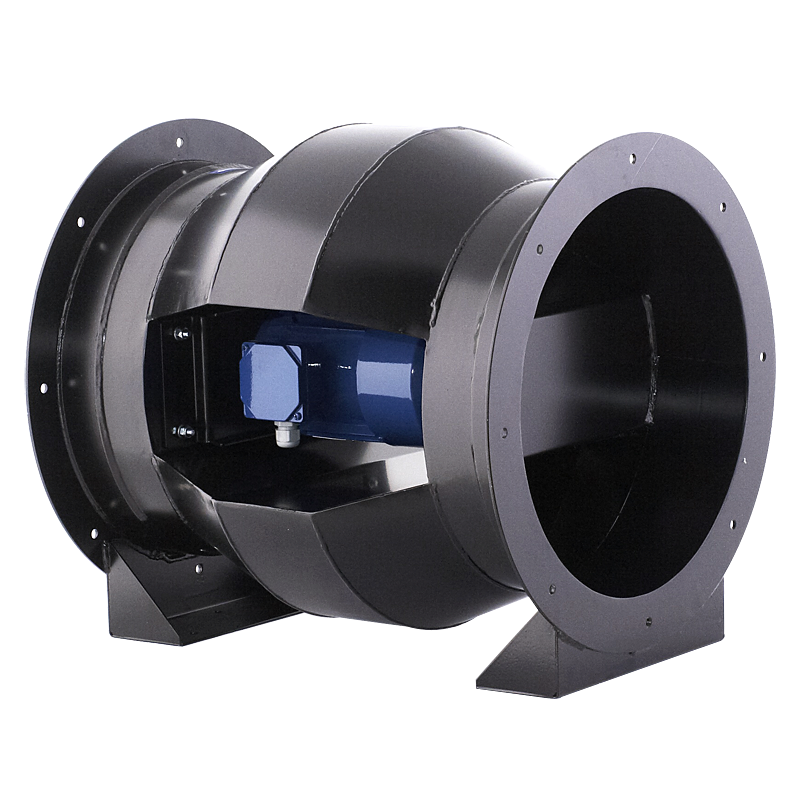

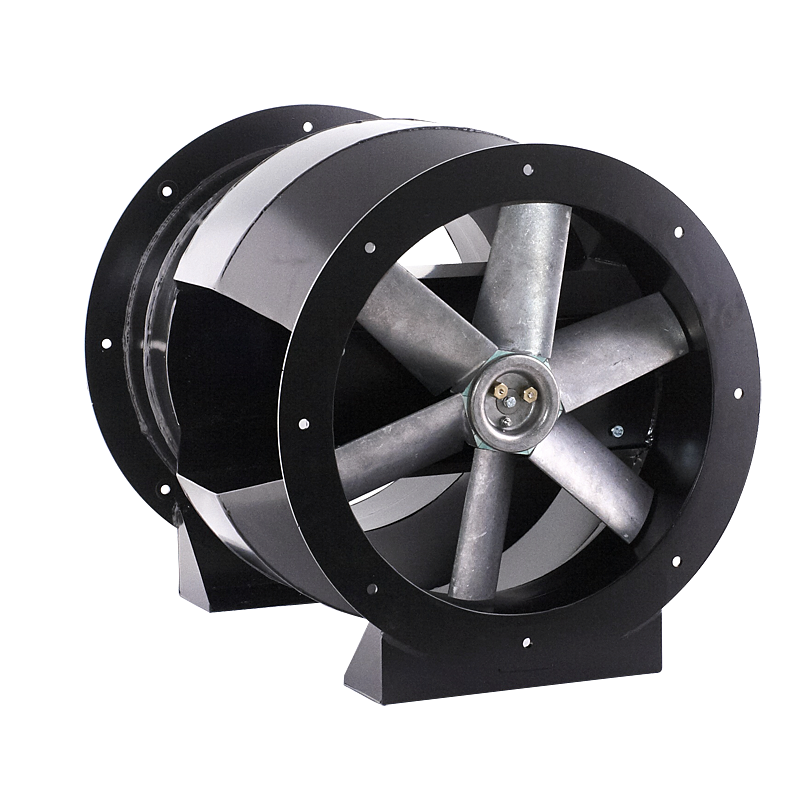

Axialventilator Rohrausführung

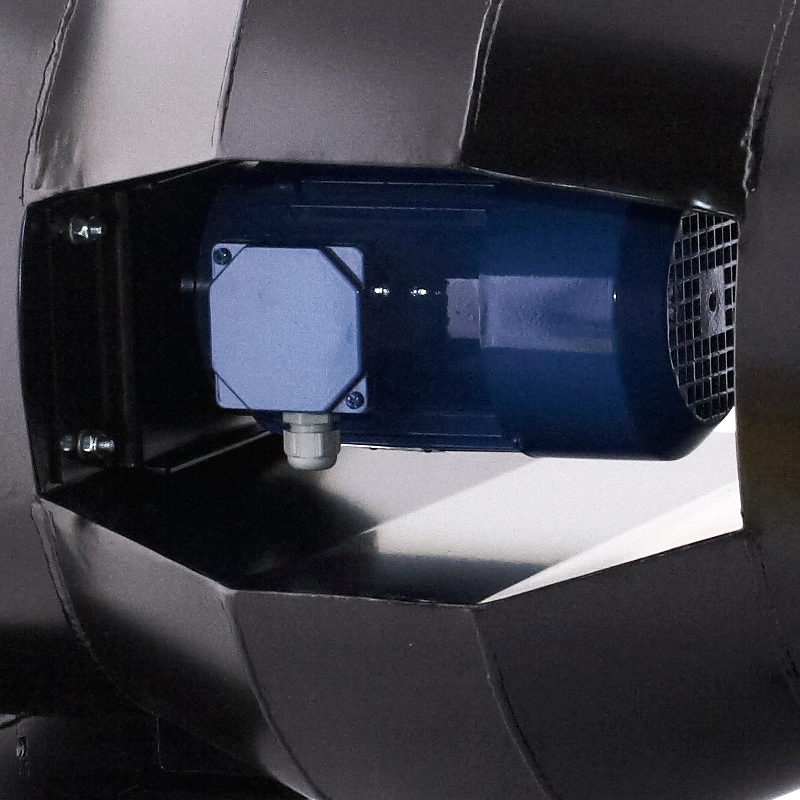

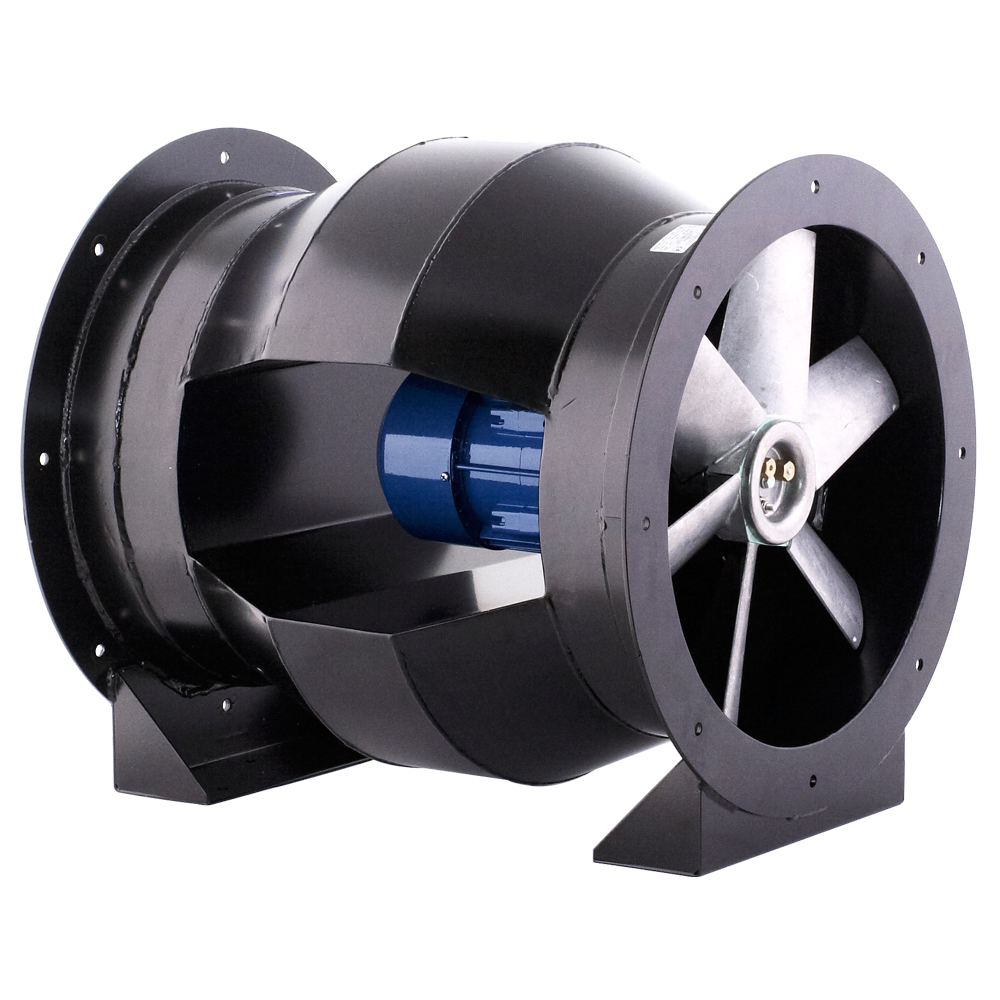

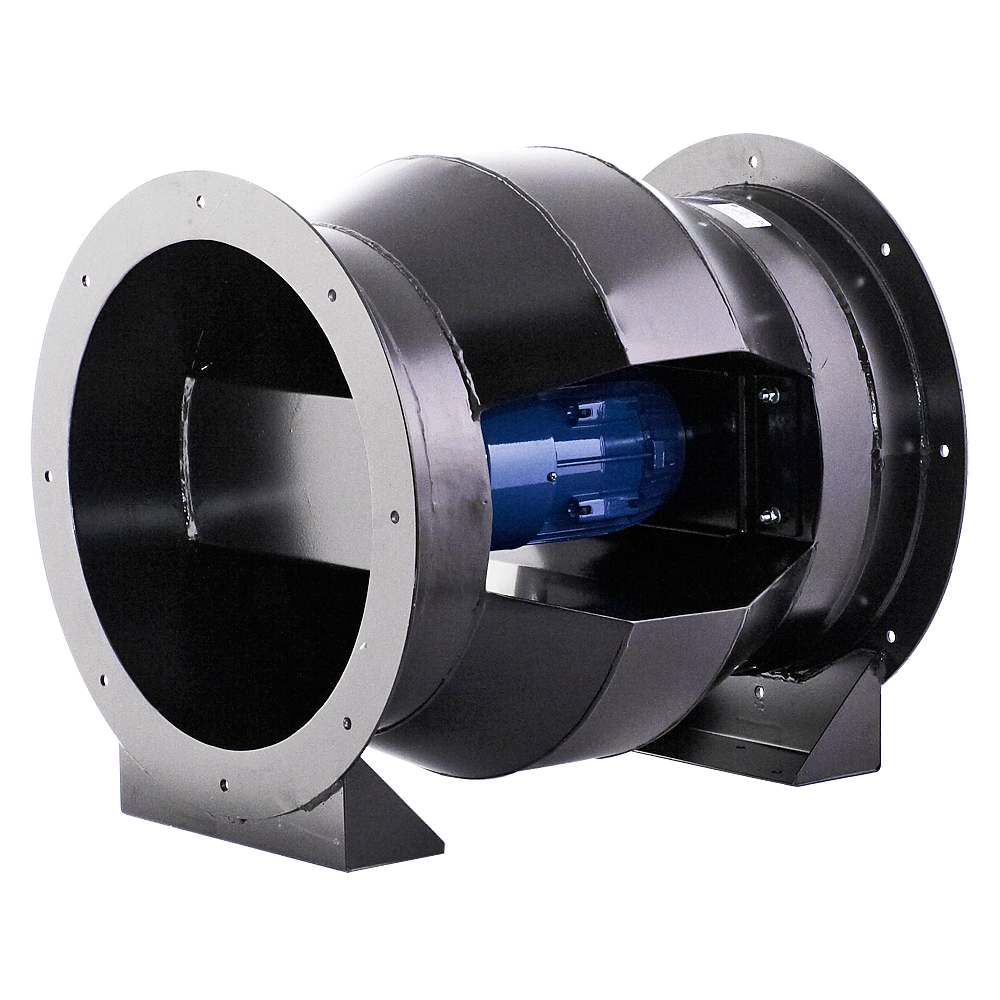

Der in einer Sonderkammer untergebrachte Elektromotor ist vollständig vom beförderten Luftstrom abisoliert. Diese Bauart ermöglicht den Transport der Luft mit der Temperatur von bis 200°C.
Die Möglichkeit, in einer anderen
als der Standardfarbe zu malen
Fragen Sie nach einem Produkt

APPLICATION

AFH fans are used in ventilation installations, where the fan is connected to air ducts at the inlet and outlet. The electrical motor mounted in aspecial chamber is completely separated from the stream of transported air. AFH fans are suitable for use in ventilation systems thatrequire high temperature of transported air, ventilating hoods over furnaces.

CONSTRUCTION

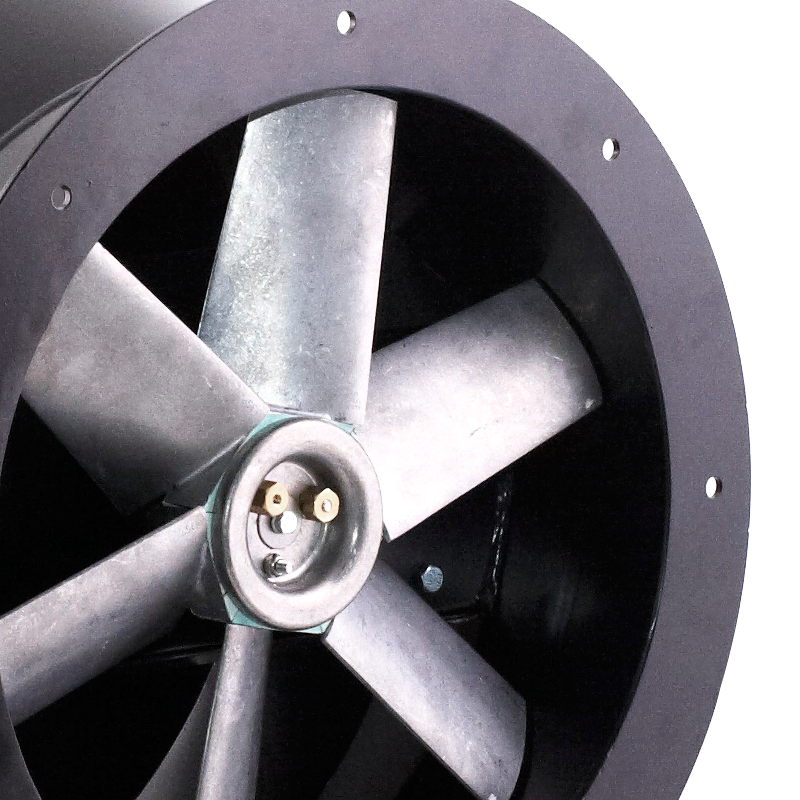

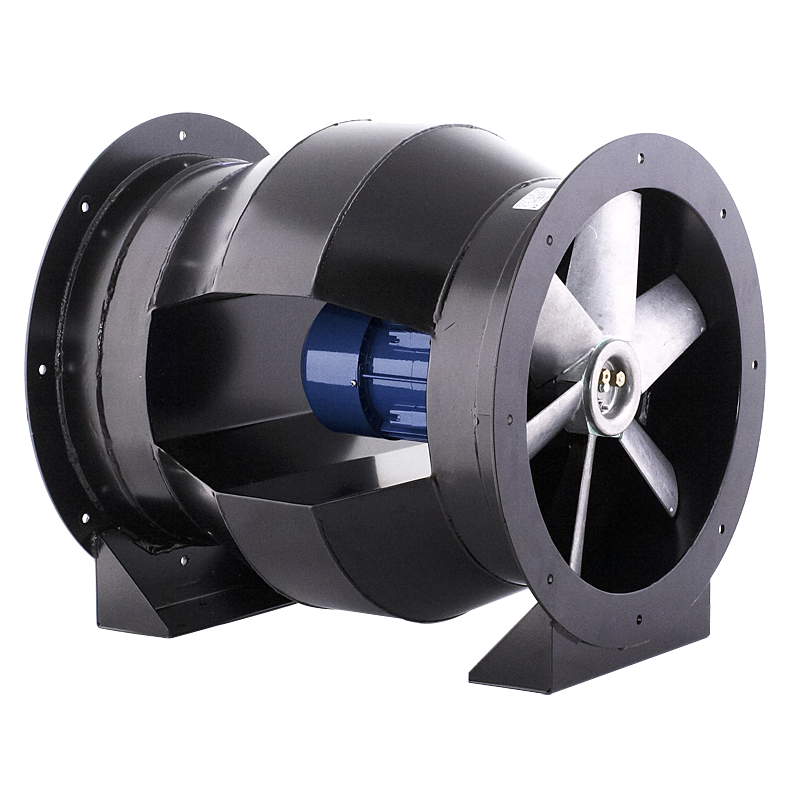

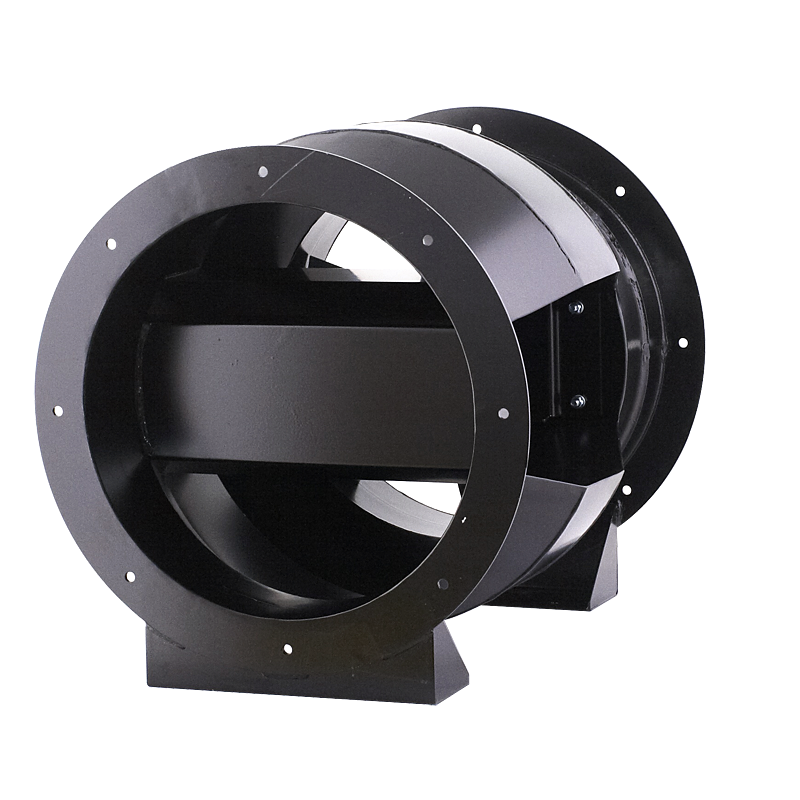

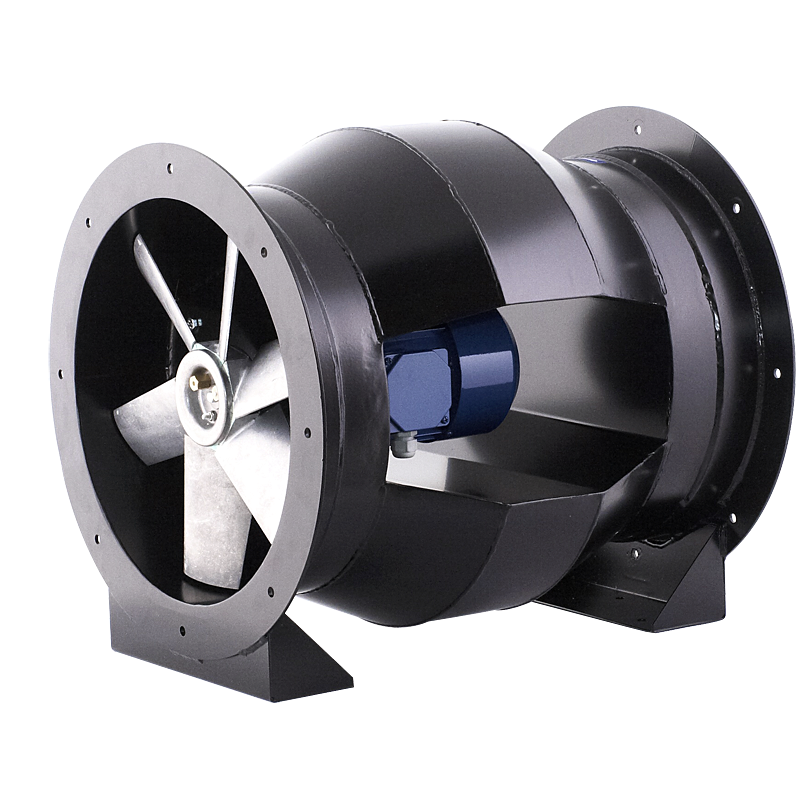

  • Axial fan with direct drive designed for duct mounting in the horizontal position,
  • The housing is made of welded steel sheet covered with powder paint,
  • The rotor is made of aluminium and dynamically balanced, according to ISO 1940-1,
  • The fans are designed for use witihin the temperature range -30oC to +200oC,
  • On request, we could supply the equipment tailored to individual customer needs, including: provided with non-standard housing (adjusted length or diameter, made of stainless or galvanized steel),
  • The fans can be supplied in any colour from the RAL palette (RAL 7042 - grey is the standard colour),
  • Fans with a diameter above 1000 mm individually selected to the specified working point.

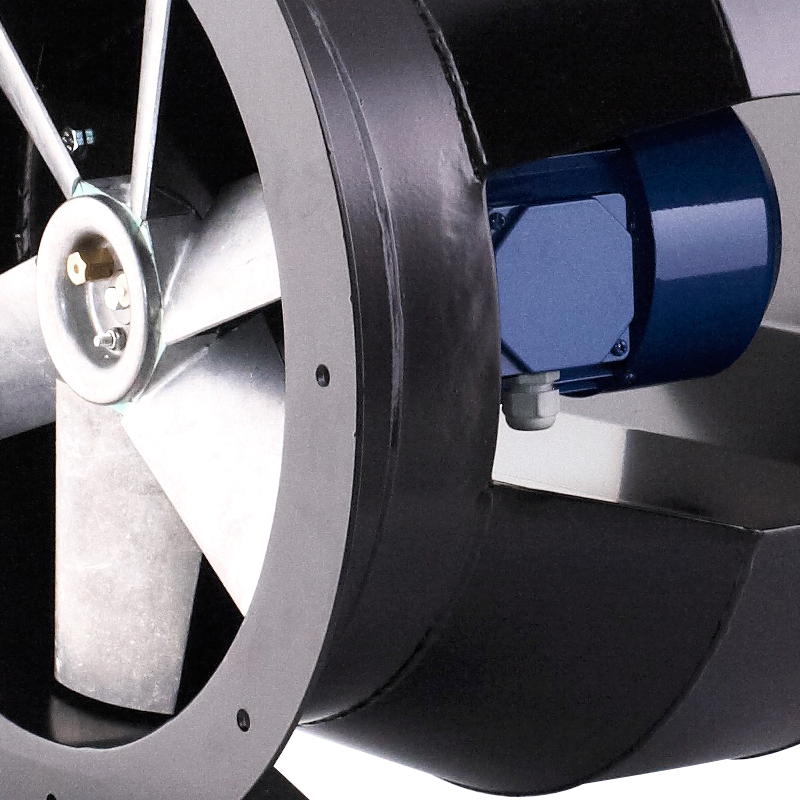

MOTOR

  • Asynchronous, three-phase 230/400V, 50Hz and 400/690V, 50Hz (depending on the fan model and engine power),
  • Insulation class F, degree of protection IP 55,
  • The motors are made in accordance with EC 60072 and 60034 standards,
  • On request, we can deliver motor provided with an independent cooling system and/or with sensors.

Technischer Support

Wähle einen Fan www.fanselectoronline.com

m3/h
Pa

Arbeitseigenschaften

Größe

Typ C F G H I J N ØA ØB ØD ØE ØK
  mm mm mm mm mm mm mm mm mm mm mm mm
AFH/2-250-025T 500 200 240 430 460 6 8 310 280 250 8 8
AFH/2-315-037T 500 200 240 430 460 6 8 375 345 315 8 8
AFH/2-355-075T 600 200 260 444 544 6 10 426 395 355 8 19
AFH/2-400-110T 580 200 300 422 522 6 8 500 450 400 10 10
AFH/2-450-300T 640 340 400 452 572 6 8 555 500 450 10 12.5
AFH/2-500-300T 730 280 450 542 662 6 8 606 556 500 10 12.5
AFH/4-400-037T 580 200 300 422 522 6 8 500 450 400 10 10
AFH/4-500-075T 730 280 450 542 662 6 8 606 556 500 10 12.5
AFH/4-630-110T 730 340 400 542 662 6 12 736 690 630 12 12.5
AFH/4-710-400T 774 550 430 542 712 6 12 816 766 710 10 12.5
AFH/6-800-110T 830 370 470 612 702 6 12 906 856 800 10 12.5
AFH/6-1000-110T 1270 550 650 1150 4 12 1106 1056 1000 10 15
