AFS - Axialventilator Rohrausführung

AFS

Axialventilator Rohrausführung

---
Die Möglichkeit, in einer anderen
als der Standardfarbe zu malen
Fragen Sie nach einem Produkt

APPLICATION

AFS fans are designed to deliver a lot of air. The AFS fans may be used for:

  • ventilation and cooling systems at various workplaces,
  • cooling of engines, compressors, electrical equipment, etc.,
  • ventilation systems in industrial rooms, sports halls, and storage facilities,
  • for drying painted surfaces, etc.,
  • for inflating figures and balloons used for advertising purposes, etc.

CONSTRUCTION

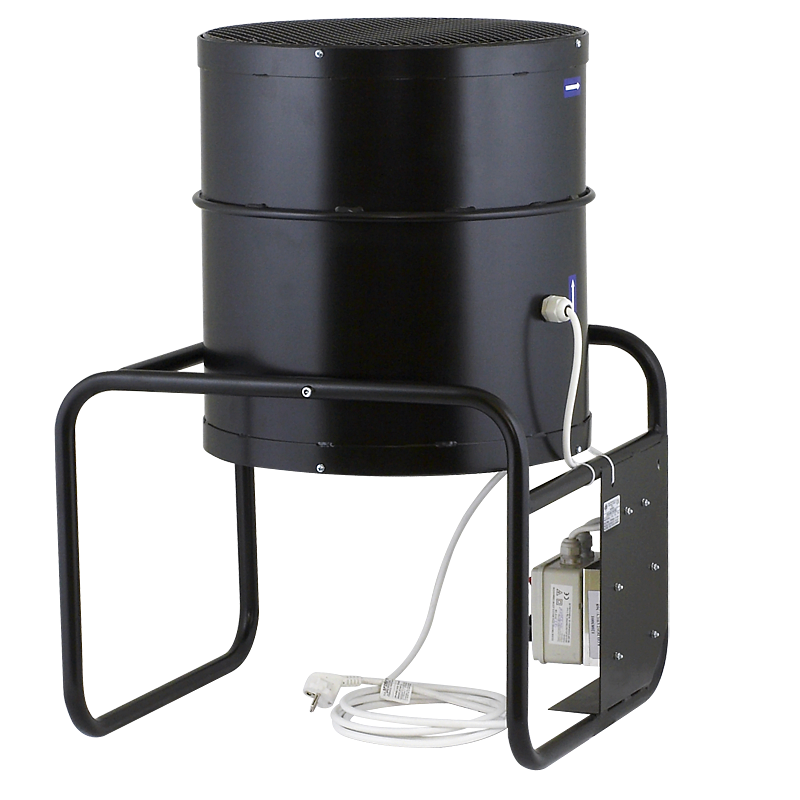

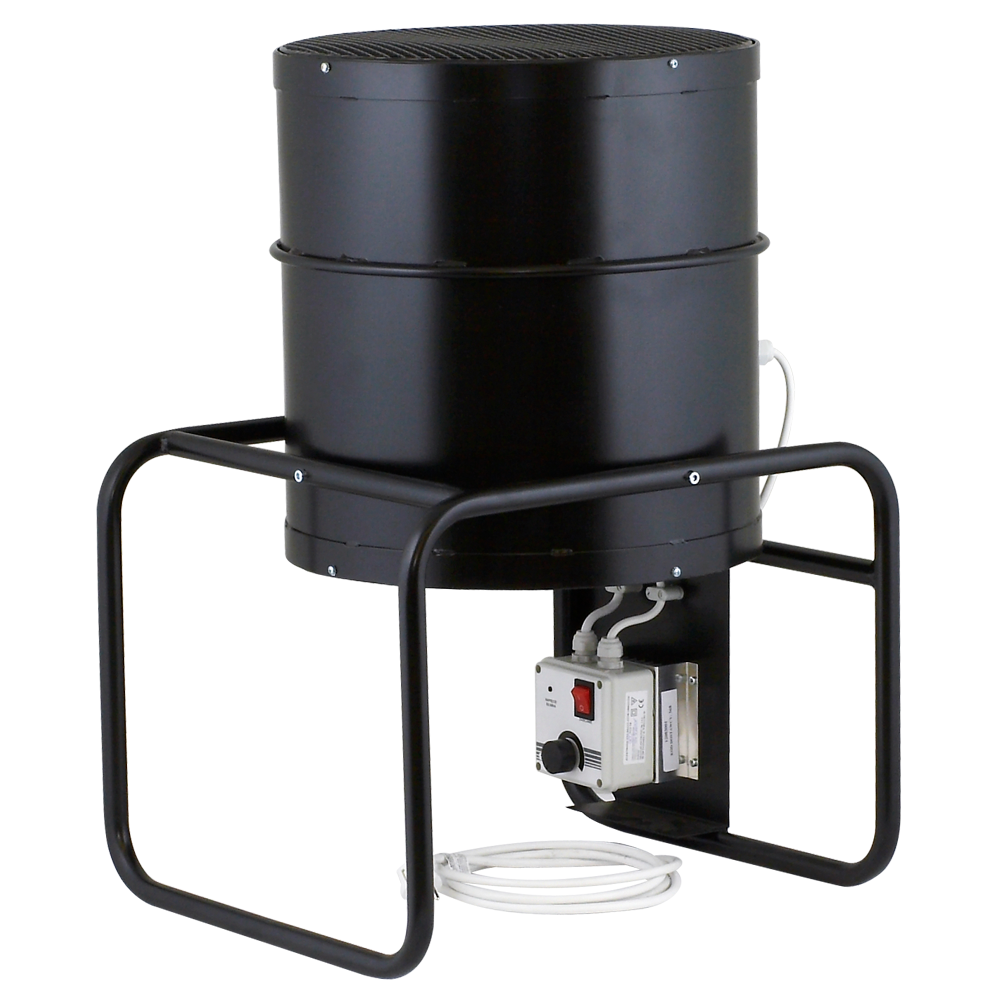

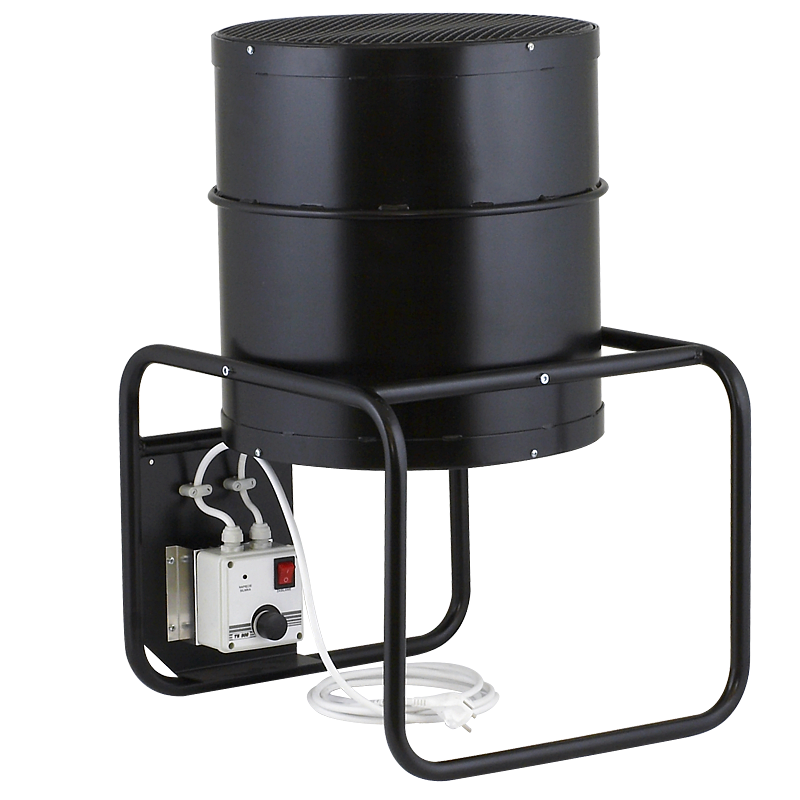

  • A mobile axial fan,

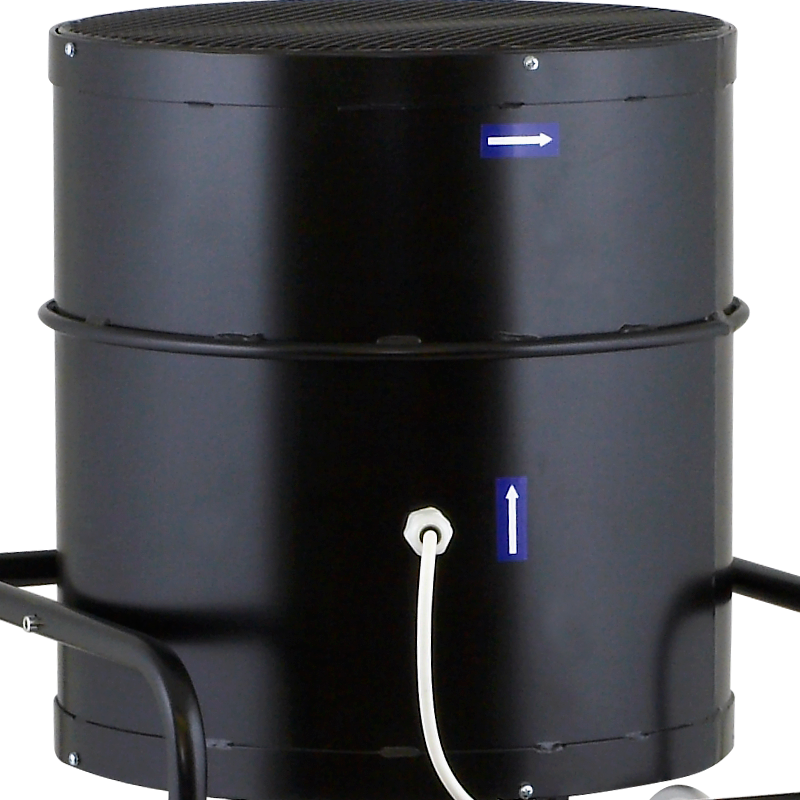

  • The housing is made of welded steel sheet painted with powder paint,
  • The rotor is made of glass-fibre reinforced polypropylene,
  • The hub is made of aluminium,
  • Connection with a 3 meter lead- through cable,
  • On request, the fans can be supplied in any colour from the RAL palette (RAL 9005 - black is the standard colour).

MOTOR

  • Asynchronous single-phase 230V, 50Hz,
  • Insulation class F, degree of protection IP 55,
  • The motors are made in accordance with EC 60072 and 60034 standards, and have been awarded with a CE mark,

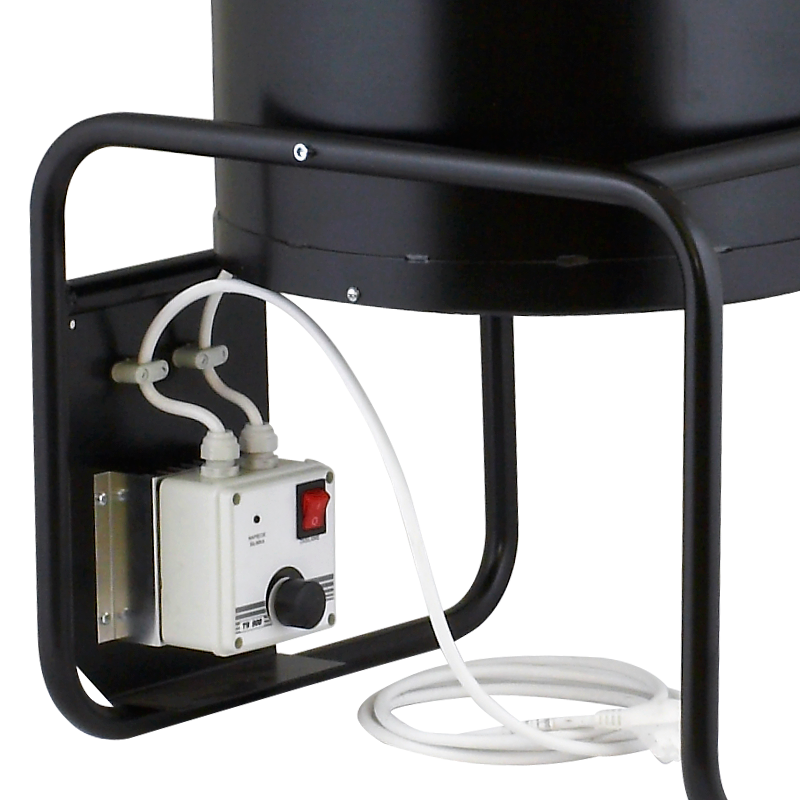

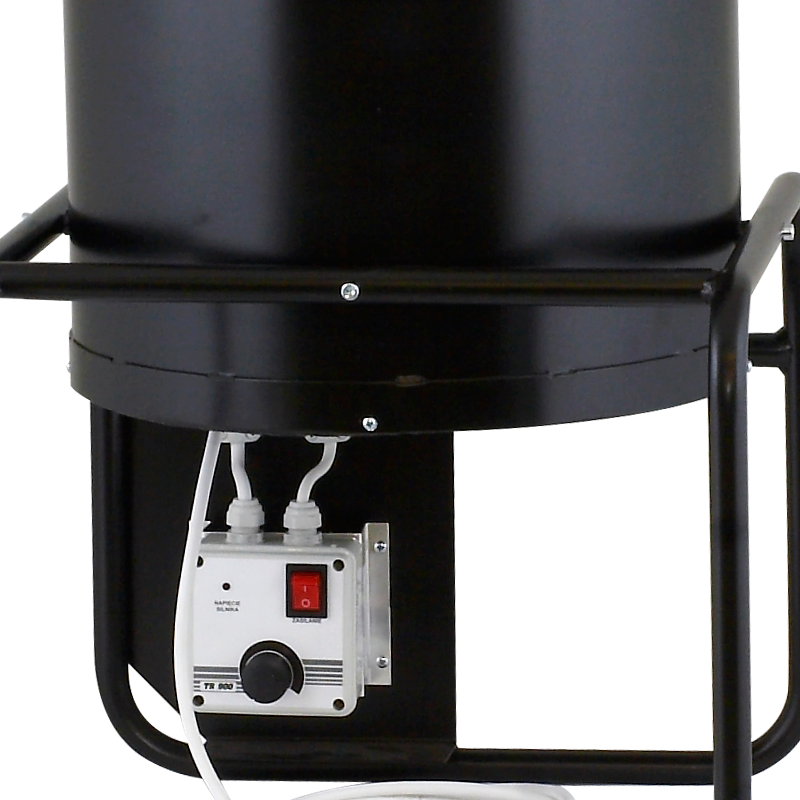

  • The AFS fans are provided with rotational speed control,
  • Optional possibility to order a fan without regulator.

Technischer Support

Wähle einen Fan www.fanselectoronline.com

m3/h
Pa

Größe

Typ A B E F ØD
  mm mm mm mm mm
AFS/2-350-055 S RU 414 630 529 400 350
AFS/2-400-110 S RU 464 630 580 430 400
AFS/4-560-110 S RU 624 630 740 450 580
