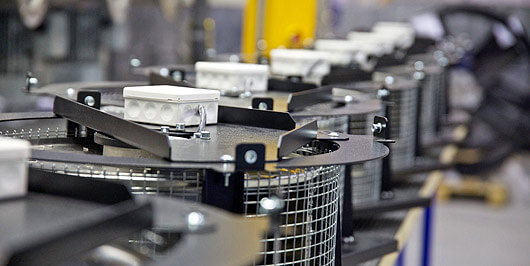

RF EC - Dachventilator

RF EC

Dachventilator

Dachventilatoren des Typs RF/EC sind für die Belüftung von Räumen mit geringer Luftverschmutzung ausgelegt. Die Ventilatoren werden in Absauganlagen in Häusern, Supermärkten, Industrieräumen, Geschäften, Lagerhäusern, Garagen, Parkplätzen und Nebengebäuden eingesetzt.
Neu im Angebot von
Ventur
Fragen Sie nach einem Produkt

APPLICATION

Roof fans, exhaustRF/EC are designed for ventilation systems of buildings with low levels of air pollution. They are used in exhaust systems of residential buildings, supermarkets, industrial halls, toilets, garages, parking lots, outhouse.

CONSTRUCTION

  • Rotors with backward blades in RF/EC are made of plastic,
  • The base, upper bowl and other components are made of aluminum sheet,
  • Enclosure made of aluzinc sheet, the base/upper bowl made of aluminum (model 355) or laminate (modes 400, 450 and 500),
  • The protective mesh is made of steel wire and then galvanized,
  • The fans a re designed for vertical work and are suitable for mounting on flat roofs where appropriate roof supports can be installed on sloping roofs.

MOTOR

  • High-efficiency motors with integrated EC technology, which reduced electricity demand (lower CO2 emissions), minimize operating costs,

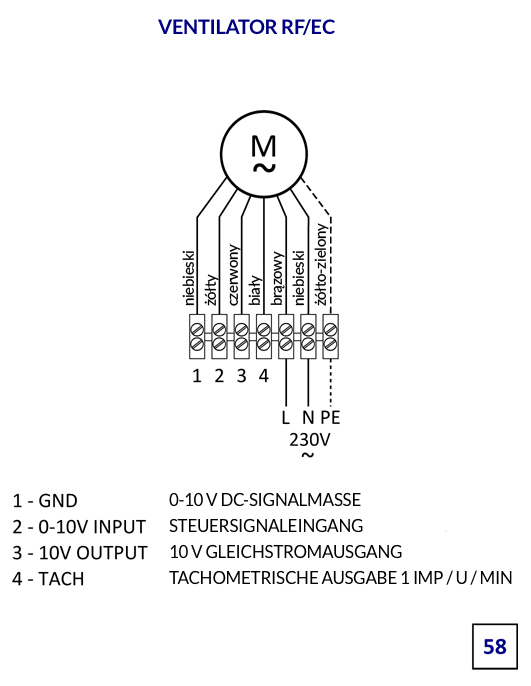

  • The fan motor is equipped with a 0-10VDC control input, which enables smooth rotation control,
  • Insulation class B, protection IP44 (models 125/L, 125/H, 160/L and 250/L),
  • Insulation class F, protection IP54 (models 125/E, 160/H, 200, 250/H, 315S and 315T),
  • Insulation class F, protection IP54 (models 355 - 630),
  • Power - single-phase 230V, 50Hz or three-phase 400V depending on model.

Technischer Support

Wähle einen Fan www.fanselectoronline.com

m3/h
Pa

Arbeitseigenschaften

RF/EC-125/L

  • Pst max = 270 Pa
  • Q max = 330 m3/h
  • P max = 34 W
  • n = 2980
  • I max = 0.34 A
  • U nom = 230 V
  • L wA = 66 dB(A)

Zusätzliche Ausstattung
