APPLICATION

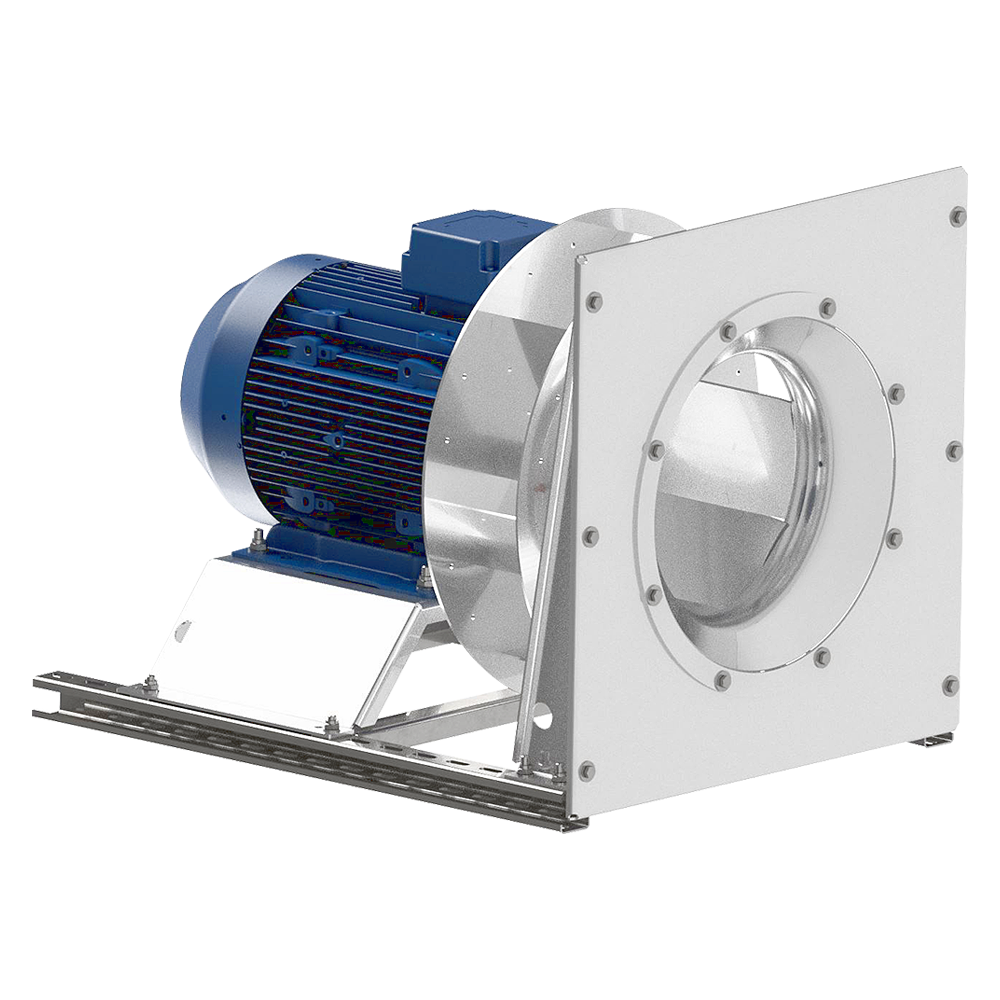

Radial fan without housing, dedicated to clean or lightly polluted air transport. Examples of use:

  • air handling units,
  • drying systems,
  • recirculation systems,
  • spray chambers.

CONSTRUCTION

  • directly driven radial fan,
  • aluminium impeller with backward curved blades, dynamically balanced according to ISO 21940-1,
  • fan adapted to horizontal installation,
  • aluminium fan with base elements made of steel painted grey RAL 7042,
  • fan working temperature range from -20oC to +40oC,
  • inlet cone equipped with 4 pressure measuring nipples Ø6mm evenly distributed in inlet circumference near the impeller.

MOTOR

  • asynchronous, three-phase, 230/400V 50Hz or 400/690V 50Hz,
  • degree of protection IP55,
  • insulation class F,
  • adapted for frequency converter.

SPECIAL EXECUTIONS

  • colour other than standard,
  • motor with voltage and frequency of power different than standard,
  • motor with other than standard degree of protection,
  • fan working temperature range below -20oC and above +40oC.

Technischer Support

Wähle einen Fan www.fanselectoronline.com

m3/h
Pa

Arbeitseigenschaften

Größe

Typ A B C F G H I M ØD ØE
  mm mm mm mm mm mm mm mm mm mm
PBM-2-250-055T 400 359 415 290 217.5 409 359 6 200 225
PBM-2-280-110T 400 359 465 290 217.5 409 359 6 225 250
PBM-2-315-150T 500 459 515 390 267.5 509 459 6 250 275
PBM-2-355-300T 500 460 565 390 265 510 460 6 280 310
PBM-4-355-037T 500 460 565 390 265 510 460 6 280 310
PBM-2-400-550T 600 559 605 490 317.5 609 559 6 311 340
PBM-4-400-075T 600 559 605 490 317.5 609 559 6 311 340
PBM-2-450-1100T 600 559 815 490 317.5 609 559 6 354 385
PBM-4-450-110T 600 559 815 490 317.5 609 559 6 354 385
PBM-2-500-1500T 650 609 816 540 342.5 659 609 8 400 435
PBM-4-500-220T 650 609 816 540 342.5 659 609 8 400 435
PBM-4-560-300T 700 659 676 590 367.5 709 659 8 450 485
PBM-6-560-150T 700 659 676 590 367.5 709 659 8 450 485
Typ A B C F G H I J M ØD ØE
  mm mm mm mm mm mm mm mm mm mm mm
PBM-4-630-550T 800 759 824 690 417.5 809 759 345 8 500 530
PBM-6-630-220T 800 759 824 690 417.5 809 759 345 8 500 530
PBM-4-710-1100T 900 859 964 790 467.5 909 859 395 8 560 600
PBM-6-710-300T 900 859 964 790 467.5 909 859 395 8 560 600
PBM-4-800-1850T 1000 959 1064 890 517.5 1009 959 445 8 630 670
PBM-6-800-550T 1000 959 1064 890 517.5 1009 959 445 8 630 670
