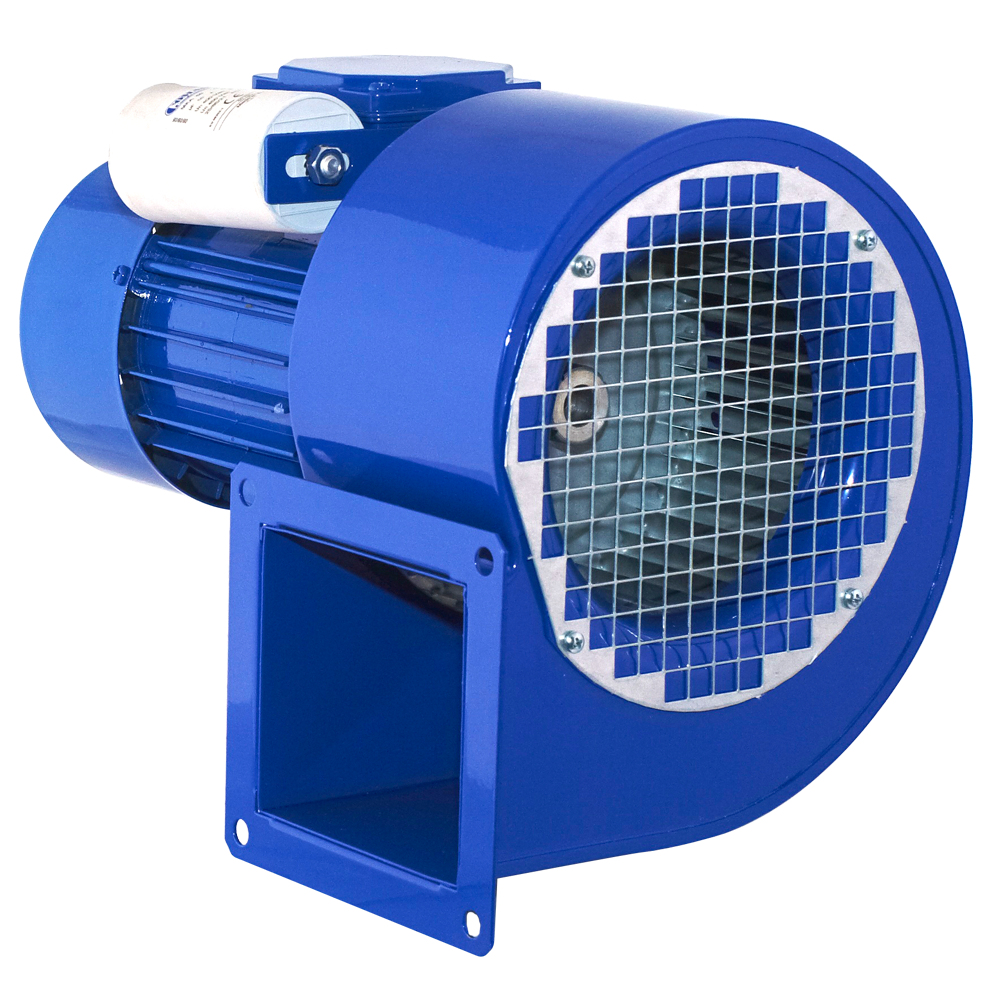

GFB - Radialventilator

GFB

Radialventilator

Der Niederdruck-Radiallüfter ist für die Förderung von nicht aggressiven und nicht entflammbaren Gasen mit einem niedrigen Staubgehalt bestimmt.
Die Möglichkeit, in einer anderen
als der Standardfarbe zu malen
Fragen Sie nach einem Produkt

APPLICATION

Fan designed for transporting non-aggressive and non-explosive gases without contomination. Typical applications:

  • various mechanical ventilation installations,
  • air pumping in production processes,
  • cooling, drying systems,
  • refrigeration and air-conditioning equipment,
  • air handling units.

CONSTRUCTION

  • low-pressure centrifugal fan with direct drive,
  • the impeller is welded from galvanized steel sheet with forward curved blades, dynamically balanced according to ISO 1940-1, (stainless steel sheet 1.4301 for size 97),
  • the housing is made of welded sheet steel,
  • protective mesh at the inlet,
  • motor stand in 250-400 models and in the 4/225 model,
  • fan painted blue RAL 5010 (corrosivity category C3),
  • maximum temperature of the transported medium is 80oC,
  • ambient temperature range from -20oC to +40oC,
  • figure LG90 in 4/250, 4/315 and 6/315 models,
  • figure LG270 in other models.

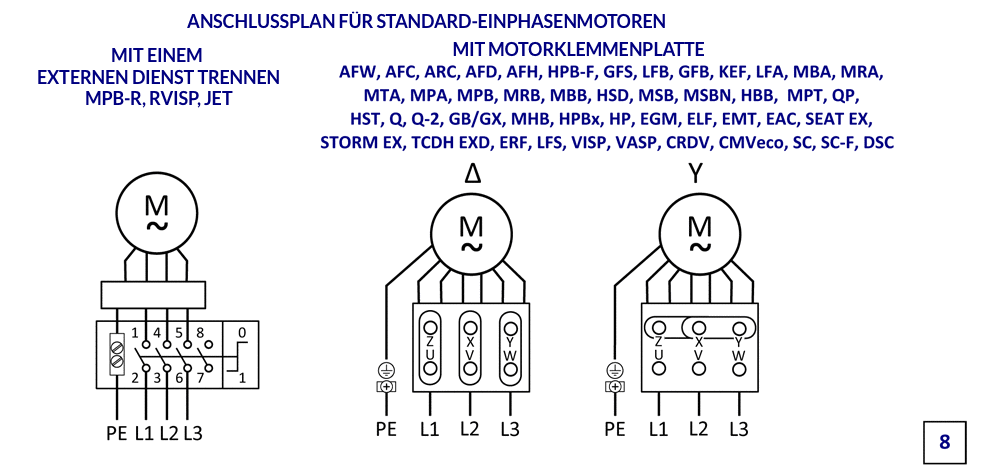

MOTOR

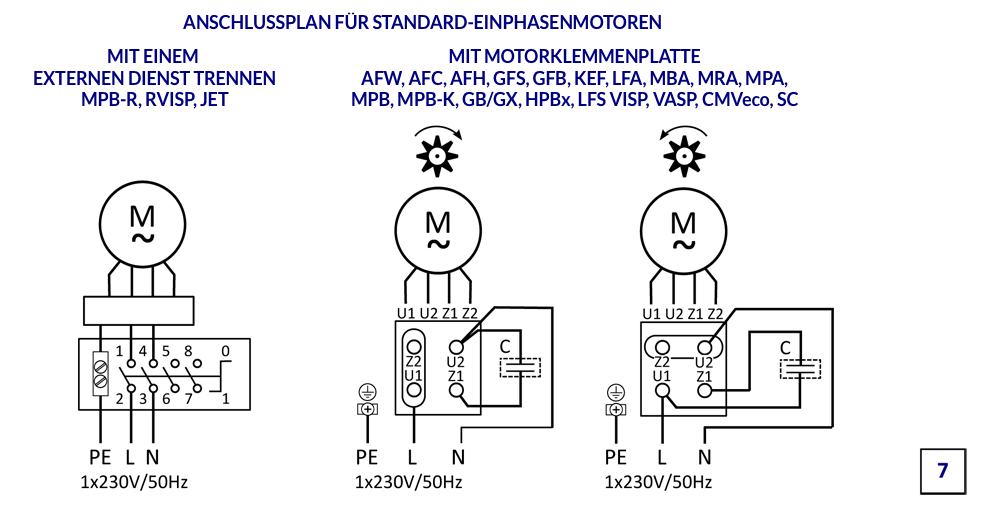

  • asynchronous single-phase 230V 50Hz (power to 1,1kW),
  • asynchronous, three-phase 230V/400V 50Hz (power to 3kW)
  • asynchronous, three-phase 400V/690V 50Hz (power from 5,5kW),
  • efficiency class IE3 (power from 0,25kW), or IE1 (power to 0,25kW),
  • degree of protection IP55,
  • insulation class F,
  • three-phase motors are adapted for frequency converter.

SPECIAL EXECUTIONS

  • optional configuration LG/RD,
  • color other than standard,
  • painting in higher category of corrosivity,
  • housing and support made of galvanized steel sheet,
  • housing and support made of stainless steel 1.4301,
  • housing and support made of acid-proof steel 1.4404,
  • motor with voltage and frequency of power different than standard,
  • motor with other than standard degree of protection,
  • motor equipped with sensors or additional cooling,
  • sealing between the housing and the motor,
  • ambient temperature range below -20oC and above +40oC.

Technischer Support

Wähle einen Fan www.fanselectoronline.com

m3/h
Pa

Größe

Typ A B C D1 D2 E F G H I
  mm mm mm mm mm mm mm mm mm mm
GFB/2-97/42-003S 199 200 204 120 130 99 115 64 65 76
GFB/2-97/42-005T 199 200 204 120 130 99 115 64 65 76
GFB/2-108/42-009T 238 245 276 150 160 115 142 91 88 115
GFB/2-133/62-018T 238 245 276 150 160 115 142 91 88 115
GFB/2-146/62-025S 258 270 288 160 175 123 155 91 88 115
GFB/2-146/62-025T 258 270 288 160 175 123 155 91 88 115
GFB/2-160/62-037S 281 296 291 172 182 132 170 90 107 110
GFB/2-160/62-037T 281 296 291 172 182 132 170 90 107 110
GFB/2-180/62-075S 312 334 345 200 210 145 192 100 123 130
GFB/2-180/62-075T 312 334 345 200 210 145 192 100 123 130
GFB/2-200/74-110S 370 370 393 222 235 182 213 119 134 143
GFB/2-200/74-110T 370 370 393 222 235 182 213 119 134 143
GFB/4-200/74-037T 370 370 393 222 235 182 213 119 134 143
GFB/2-225/104-300T 374 382 462 250 280 182 217 148 136 173
Typ J K L S T X O X1 O1
  mm mm mm mm mm mm mm mm mm
GFB/2-97/42-003S 76 90 90 34 36 4 6 8 3
GFB/2-97/42-005T 76 90 90 34 36 4 6 8 3
GFB/2-108/42-009T 105 130 120 45 49 4 7 6 3
GFB/2-133/62-018T 105 130 120 45 49 4 7 6 3
GFB/2-146/62-025S 105 130 120 45 49 4 7 8 3
GFB/2-146/62-025T 105 130 120 45 49 4 7 8 3
GFB/2-160/62-037S 120 126 140 55 49 4 7 8 3
GFB/2-160/62-037T 120 126 140 55 49 4 7 8 3
GFB/2-180/62-075S 130 155 155 62 53 3 7 8 3
GFB/2-180/62-075T 130 155 155 62 53 3 7 8 3
GFB/2-200/74-110S 160 163 180 70 64 4 7 8 3
GFB/2-200/74-110T 160 163 180 70 64 4 7 8 3
GFB/4-200/74-037T 160 163 180 70 64 4 7 8 3
GFB/2-225/104-300T 161 193 181 74 78 4 11 8 6
Typ A B C D1 D2 E F G
  mm mm mm mm mm mm mm mm
GFB/2-250/114-550T 418 522 538 290 310 202 343 175
Typ H I J K L N1 N2
  mm mm mm mm mm mm mm
GFB/2-250/114-550T 195 210 230 235 255 20 190
Typ N3 N4 N5 P1 P2 P3 S
  mm mm mm mm mm mm mm
GFB/2-250/114-550T 360 380 470 290 326 350 192
Typ T X O X1 O1 X2 O2
  mm mm mm mm mm mm mm
GFB/2-250/114-550T 90 4 11 8 7 6 11
Typ A B C ØD1 ØD2 E F G
  mm mm mm mm mm mm mm mm
GFB/4-250/114-075S 418 595 419 290 310 202 343 175
GFB/4-250/114-075T 418 595 419 290 310 202 343 175
Typ H I J K L N1 N2
  mm mm mm mm mm mm mm
GFB/4-250/114-075S 195 210 230 235 255 20 190
GFB/4-250/114-075T 195 210 230 235 255 20 190
Typ N3 N4 N5 P1 P2 P3 S
  mm mm mm mm mm mm mm
GFB/4-250/114-075S 360 380 470 290 323 350 494
GFB/4-250/114-075T 360 380 470 290 323 350 494
Typ T X ØO X1 ØO1 X2 ØO2
  mm mm mm mm mm mm mm
GFB/4-250/114-075S 87 4 11 8 7 6 11
GFB/4-250/114-075T 87 4 11 8 7 6 11
Typ A B C ØD1 ØD2 E F G
  mm mm mm mm mm mm mm mm
GFB/4-315/143-300T 502 789 552 360 374 215 443 237
Typ G1 H H1 I J K L N
  mm mm mm mm mm mm mm mm
GFB/4-315/143-300T 136 247 140 271 281 305 315 25
Typ N2 N3 N4 N5 N6 P1 P2 P3
  mm mm mm mm mm mm mm mm
GFB/4-315/143-300T 210 395 420 422 543 220 253 280
Typ S T X ØO X1 ØO1 X2 ØO2
  mm mm mm mm mm mm mm mm
GFB/4-315/143-300T 660 121 8 11 7 6 6 12
Typ A B C ØD1 ØD2 E F G
  mm mm mm mm mm mm mm mm
GFB/4-400/183-750T 661 858 695 446 465 282 535 298
GFB/6-400/183-220T 661 858 695 446 465 282 535 298
Typ G1 H H1 I J K L N1
  mm mm mm mm mm mm mm mm
GFB/4-400/183-750T 166 281 158 332 315 366 349 30
GFB/6-400/183-220T 166 281 158 332 315 366 349 30
Typ N2 N3 N4 N5 N6 P1 P2 P3
  mm mm mm mm mm mm mm mm
GFB/4-400/183-750T 260 490 532 540 684 350 394 430
GFB/6-400/183-220T 260 490 532 540 684 350 394 430
Typ S T X ØO X1 ØO1 X2 ØO2
  mm mm mm mm mm mm mm mm
GFB/4-400/183-750T 246 152 8 11 8 9 6 14
GFB/6-400/183-220T 246 152 8 11 8 9 6 14
Typ A B C ØD1 ØD2 E F
  mm mm mm mm mm mm mm
GFB/6-450/203-550T 697 844 732 500 565 295 500
Typ G H I J K L N1
  mm mm mm mm mm mm mm
GFB/6-450/203-550T 323 303 340 330 369 360 15
Typ N2 N3 N4 P1 P2 P3 S
  mm mm mm mm mm mm mm
GFB/6-450/203-550T 464 615 630 280 324 360 200
Typ T X ØO X1 ØO1 X2 ØO2
  mm mm mm mm mm mm mm
GFB/6-450/203-550T 164 4 9 12 9 4 10
