GMT - Radialventilator

GMT

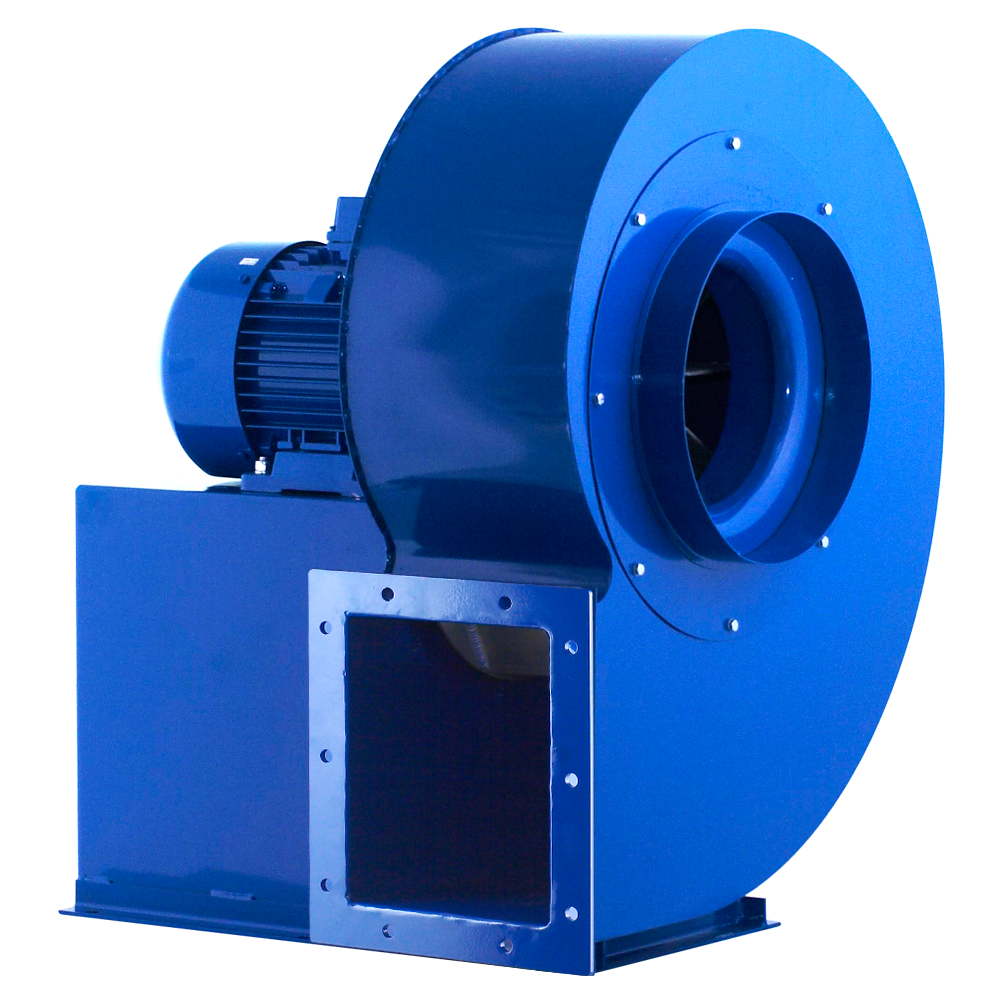

Radialventilator

Die Lüfter der Baureihe GMT finden breite Anwendung in den Abzugssystemen für verunreinigte Luft und bei der Druckluftförderung.
Die Möglichkeit, in einer anderen
als der Standardfarbe zu malen
Fragen Sie nach einem Produkt

APPLICATION

Fan designed for polluted air exhaust systems and pneumatic transport. Typical applications:

  • local exhaust systems, dehumidifiers, drying systems,
  • transport of shavings, sawdust, granulates,
  • combustion gas exhaust systems.

CONSTRUCTION

  • medium-pressure, centrifugal fan with direct drive,
  • aluminum alloy impeller with straight blades (models to 800, from model 900 to 1500 the impeller is welded from steel sheet), dynamically balanced in accordance with ISO1940-1,
  • welded sheet steel housing,
  • rectangular from model 60 to 600,
  • spiral from model 700 to 1500,
  • motor support in models from 500 to 1500,
  • painted in RAL 5010 (corrosivity category C3),
  • maximum medium temperature 80oC,
  • ambient temperature range from -20oC to +40oC,
  • standard RD90 positions in models from 60 to 400,
  • standard LG270 positions in models from 500 to 1500.

MOTOR

  • asynchronous single-phase 230V 50Hz (power to 1,1 kW),
  • asynchronous, three-phase 230V/400V 50Hz (power to 3 kW),
  • asynchronous, three-phase 400V/690V 50Hz (power from 4 kW),
  • efficiency class IE3 (from 0,75 kW),
  • degree of protection IP55,
  • insulation class F,
  • three-phase motors are adapted for frequency converter.

SPECIAL EXECUTIONS

  • different positions LG/RD,
  • painting in a different color,
  • painting in higher category of corrosivity,
  • spiral housing for models from 60 to 600,
  • impeller welded from steel sheet for models to 800,
  • impeller, housing and support made of galvanized steel sheet,
  • impeller, housing and support made of stainless steel 1.4301,
  • impeller, housing and support made of acid-proof steel 1.4404,
  • different motor voltage and frequency,
  • single-phase motor driven by voltage,
  • different motor degree of protection,
  • motor equipped with sensors or additional cooling,
  • radial shaft sealing,
  • maximum medium temperature above 80oC,
  • ambient temperature range below -20oC and above +40oC,
  • belt drive,
  • sound-acoustic isolation.

Technischer Support

Wähle einen Fan www.fanselectoronline.com

m3/h
Pa

Größe

Typ A A1 B B1 C ØD E E1
  mm mm mm mm mm mm mm mm
GMT-60-037S 382 332 432 382 330 98 170 50
GMT-60-037T 382 332 432 382 330 98 170 50
GMT-80-037S 382 332 432 382 397 158 170 50
GMT-80-037T 382 332 432 382 397 158 170 50
GMT-80-055S 382 332 432 382 397 158 170 50
GMT-80-055T 382 332 432 382 397 158 170 50
GMT-100-055S 413 362.5 463 422.5 393 158 192 50.5
GMT-100-055T 413 362.5 463 422.5 393 158 192 50.5
GMT-100-075S 413 362.5 463 422.5 393 158 192 50.5
GMT-100-075T 413 362.5 463 422.5 393 158 192 50.5
GMT-130-075S 413 362.5 463 422.5 427 158 192 50.5
GMT-130-075T 413 362.5 463 422.5 427 158 192 50.5
GMT-130-110S 413 362.5 463 422.5 427 158 192 50.5
GMT-130-110T 413 362.5 463 422.5 427 158 192 50.5
GMT-200-110S 503 456 571 489 424 158 222 48
GMT-200-110T 503 456 571 489 424 158 222 48
GMT-250-150T 503 456 571 489 463 158 222 48
GMT-250-220T 503 456 571 489 463 158 222 48
GMT-300-220T 503 456 571 489 494 198 222 48
GMT-400-300T 503 456 571 489 494 248 222 48
Typ F F1 G H I J K L
  mm mm mm mm mm mm mm mm
GMT-60-037S 195 50 80 80 108 90 133 125
GMT-60-037T 195 50 80 80 108 90 133 125
GMT-80-037S 195 50 130 133 158 143 183 178
GMT-80-037T 195 50 130 133 158 143 183 178
GMT-80-055S 195 50 130 133 158 143 183 178
GMT-80-055T 195 50 130 133 158 143 183 178
GMT-100-055S 202 50.5 110 100 137 110 162 145
GMT-100-055T 202 50.5 110 100 137 110 162 145
GMT-100-075S 202 50.5 110 100 137 110 162 145
GMT-100-075T 202 50.5 110 100 137 110 162 145
GMT-130-075S 202 50.5 110 100 137 110 162 145
GMT-130-075T 202 50.5 110 100 137 110 162 145
GMT-130-110S 202 50.5 110 100 137 110 162 145
GMT-130-110T 202 50.5 110 100 137 110 162 145
GMT-200-110S 250 81 110 140 138 150 163 185
GMT-200-110T 250 81 110 140 138 150 163 185
GMT-250-150T 250 81 110 140 138 150 163 185
GMT-250-220T 250 81 110 140 138 150 163 185
GMT-300-220T 250 81 140 140 168 150 193 185
GMT-400-300T 250 81 140 140 168 150 193 185
Typ N1 N2 N3 N4 N5 N6 R T
  mm mm mm mm mm mm mm mm
GMT-60-037S 12.5 26.5 66.5 106.5 120.5 133 374 70
GMT-60-037T 12.5 26.5 66.5 106.5 120.5 133 374 70
GMT-80-037S 12.5 26.5 91.5 156.5 170.5 183 347 95
GMT-80-037T 12.5 26.5 91.5 156.5 170.5 183 347 95
GMT-80-055S 12.5 26.5 91.5 156.5 170.5 183 347 95
GMT-80-055T 12.5 26.5 91.5 156.5 170.5 183 347 95
GMT-100-055S 12.5 26 81 136 149.5 162 304 103
GMT-100-055T 12.5 26 81 136 149.5 162 304 103
GMT-100-075S 12.5 26 81 136 149.5 162 304 103
GMT-100-075T 12.5 26 81 136 149.5 162 304 103
GMT-130-075S 12.5 26 81 136 149.5 162 394 103
GMT-130-075T 12.5 26 81 136 149.5 162 394 103
GMT-130-110S 12.5 26 81 136 149.5 162 394 103
GMT-130-110T 12.5 26 81 136 149.5 162 394 103
GMT-200-110S 12.5 26.5 81.5 136.5 150.5 163 483 99
GMT-200-110T 12.5 26.5 81.5 136.5 150.5 163 483 99
GMT-250-150T 12.5 26.5 81.5 136.5 150.5 163 483 99
GMT-250-220T 12.5 26.5 81.5 136.5 150.5 163 483 99
GMT-300-220T 12.5 26.5 96.5 166.5 180.5 193 483 114
GMT-400-300T 12.5 26.5 96.5 166.5 180.5 193 483 114
Typ A A1 B B1 C ØD E E1 F F1
  mm mm mm mm mm mm mm mm mm mm
GMT-500-400T 504 456 573 490 620 250 222 48 322 82
GMT-600-550T 504 456 572 490 693 250 222 48 322 82
Typ G H I J K L N1
  mm mm mm mm mm mm mm
GMT-500-400T 240 195 269 205 294 234 12.5
GMT-600-550T 280 195 309 205 334 234 12.5
Typ N2 N3 N4 N5 N6 N7 N8
  mm mm mm mm mm mm mm
GMT-500-400T 27 147 267 256.5 294 303.6 331.6
GMT-600-550T 27 167 307 321.5 334 343 371
Typ N9 N10 P1 P2 P3 R T
  mm mm mm mm mm mm mm
GMT-500-400T 526.6 554.6 287 256 233 110 174
GMT-600-550T 566 594 287 256 227 110 194
Typ A B C ØD E F G H I
  mm mm mm mm mm mm mm mm mm
GMT-700-750T 656 848 686 315 262 522 240 286 273
GMT-750-1100T 656 848 703 315 262 527 240 286 273
GMT-800-1500T 656 848 794 355 262 527 240 286 273
Typ J K L M N1 N2 N3
  mm mm mm mm mm mm mm
GMT-700-750T 315 303 340 56 35 80 320
GMT-750-1100T 315 303 340 52 50 130 335
GMT-800-1500T 315 303 340 52 50 130 335
Typ N4 N5 P1 P2 P3 R T
  mm mm mm mm mm mm mm
GMT-700-750T 570 605 276 316 336 192 178
GMT-750-1100T 620 655 270 320 356 197 174
GMT-800-1500T 620 655 340 384 420 197 174
Typ
  mm mm mm mm mm mm mm
GMT-700-750T
GMT-750-1100T
GMT-800-1500T
Typ A B C ØD1 ØD2 ØD3 E F M N1
  mm mm mm mm mm mm mm mm mm mm
GMT-900-1500T 1016 1161 750 315 345 375 443 640 58 30
GMT-1200-1500T 788 927 837 400 450 500 335 549 52 25
Typ N2 N3 N4 N5 P1 P2 P3 R T ØZ
  mm mm mm mm mm mm mm mm mm mm
GMT-900-1500T 145 375 720 750 340 400 440 197 158 8
GMT-1200-1500T 184 375 705 730 376.5 404 440 231 196 10
Typ
  mm mm mm mm mm mm mm
GMT-900-1500T
GMT-1200-1500T
Typ
  mm mm mm mm mm mm mm
GMT-900-1500T
GMT-1200-1500T
Typ A B C E F M N1 N2 N3
  mm mm mm mm mm mm mm mm mm
GMT-1500-3000T 1058.5 1208 917.5 473.5 710 116.5 57 182.5 317
GMT-1500-3700T 1058.5 1208 917.5 473.5 710 116.5 57 182.5 317
Typ N4 N5 P1 P2 P3 P4 R T
  mm mm mm mm mm mm mm mm
GMT-1500-3000T 717 749 440 490 540 300 288 219
GMT-1500-3700T 717 749 440 490 540 300 288 219
Typ
  mm mm mm mm mm mm mm
GMT-1500-3000T
GMT-1500-3700T
Typ
  mm mm mm mm mm mm mm
GMT-1500-3000T
GMT-1500-3700T
