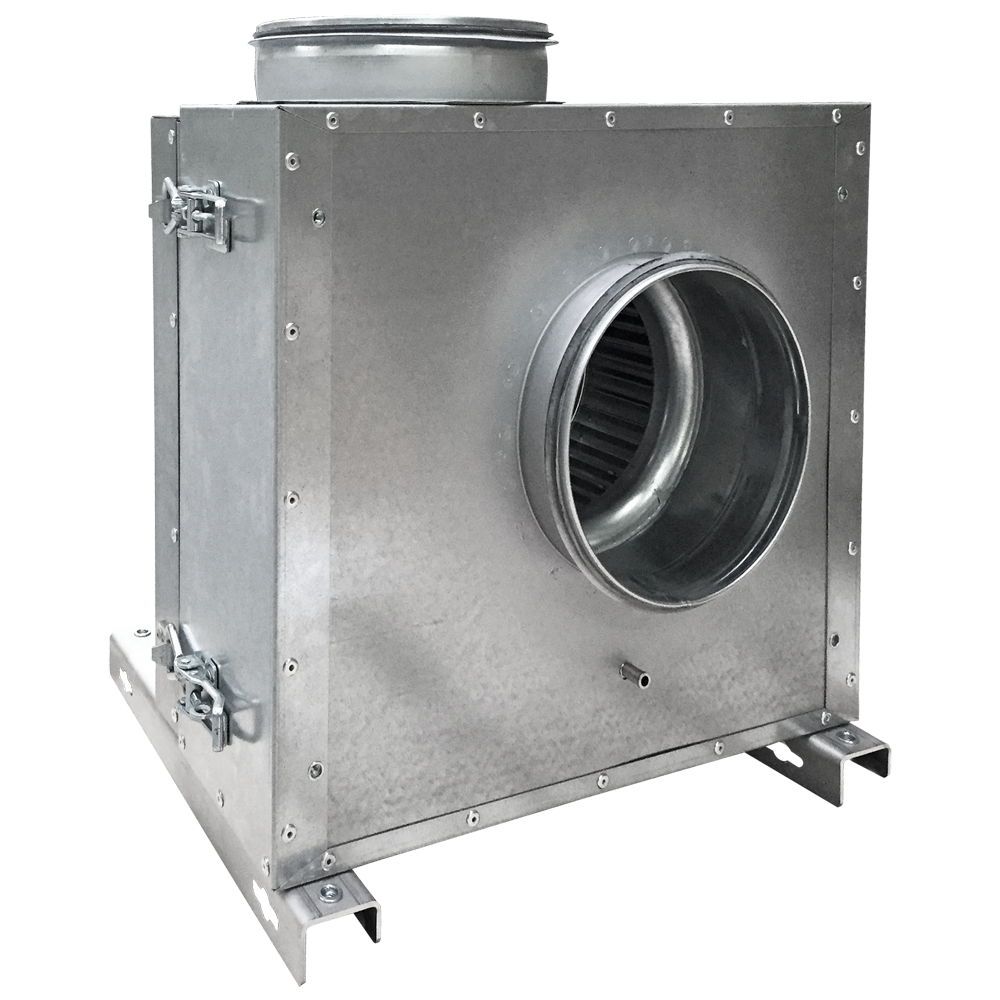

KEF - Radialventilator

KEF

Radialventilator

Die erzielten Druck- und Leistungsparameter lassen diese Lüfter in allen Arten der allgemeinen Lüftungsanlagen einsetzen.

Fragen Sie nach einem Produkt

APPLICATION

Fan designed for transporting non-aggressive and non-explosive gases without contamination. Typical applications:

kitchen hoods,
hoods in small catering outlets.

CONSTRUCTION

centrifugal fan with direct drive,
the impeller (models from 160 to 280) is welded from galvanizes steel sheet with forward curved blades (type F),
the impeller (models 315 and 355) is welded from aluminium sheet with backward curved blades,
impellers dynamically balanced,
the housing is made of galvanized sheet steel, acoustically insulated and thermally mat in fire resistance class A1, 50mm thick,

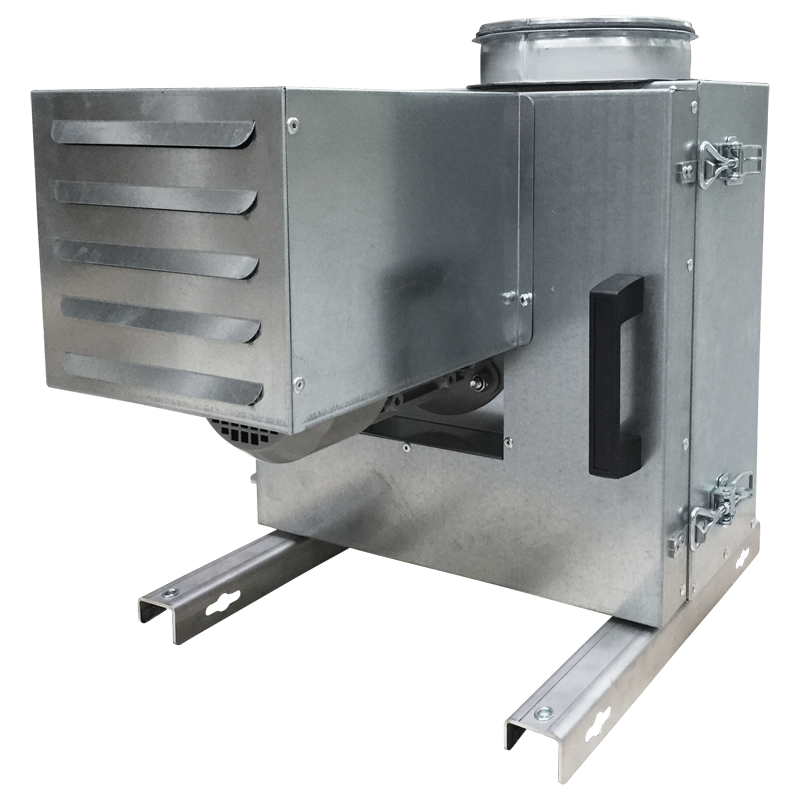

motor with impeller mounted on a tilting door, providing easy access to the interior of the fan and maintenance,
motor cover is made of galvanized sheet steel,
the fan has handles on which the fan can be placed,
drainage as standard,
vibro-isolators as standard,
the suction and discharge fan is equipped with connection stubs with rubber gaskets.
maximum temperature of the supplied medium120°C.

MOTOR

asynchronous single-phase 230V 50Hz (power to 1,1kW),
asynchronous, three-phase 230V/400V 50Hz (power to 2,2 kW),
degree of protection IP55,
insulation class F,
three-phase motors are adapted for frequency converter.
